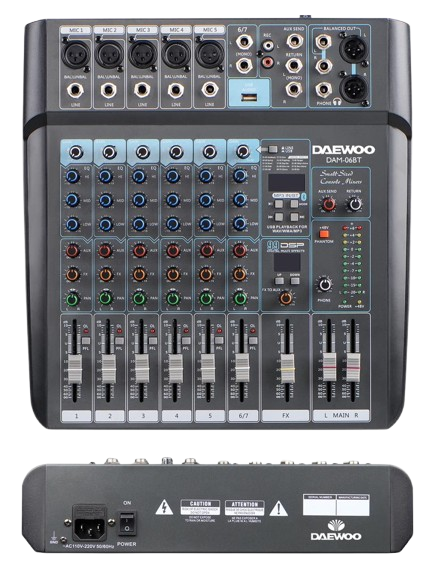

DAM-06BT

Small-format Analog Mixing Console with Bluetooth & USB, with 99 DSP Effects

The latest DAM Series mixers make is easy to get legendary sound for your music, and podcasts. DAM-06BT mixer combines professional-grade analog components, from renowned DAEWOO digital signal processing, and a built-in Bluetooth and USB audio interface. Whether you’re a singer-songwriter or a group of podcasters, DAM-06BT mixers offer best-in-class features so you can bring a level to enhance your creative productions that make sure to impress your audience.

Enquiry

Features

Discrete Class-A Mic Preamps

This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. DAM Series mixing consoles feature Daewoo's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

High Quality Sound Op-amp

The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. DAM Series mixers feature new, high-quality, custommade DAM-06BT op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. DAM-06BT op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch

With phantom power, DAM Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

Tech Specification

Model DAM-06BT
Channel 5 Mono + 1 Stereo
Frequency Response 20Hz – 20kHz
Dynamic Range +/-1.5dB, 20Hz – 20kHz
THD 0.01% @ 1kHz
Mic/Line Input to any Output +/-1.5dB
Mic gain 10dB to 58dB
Line input attenuation 20dB
Channel EQ 3 Band
HF 12kHz shelf -12dB to +12dB
MF 2kHz bell -12dB to +12dB
LF 80Hz shelf -12dB to +12dB
Output Level - Mix Output +22dBu max
Output Level - Headphones, 150Ω 165mW
AUX 1
Return 1 Stereo
Effects  99 DSP
Main out 1 Stereo
Phantom power 48V DC
USB Yes
Bluetooth Yes
SD Card Yes
Dimensions (mm) 350*325*75 (H*W*L)
