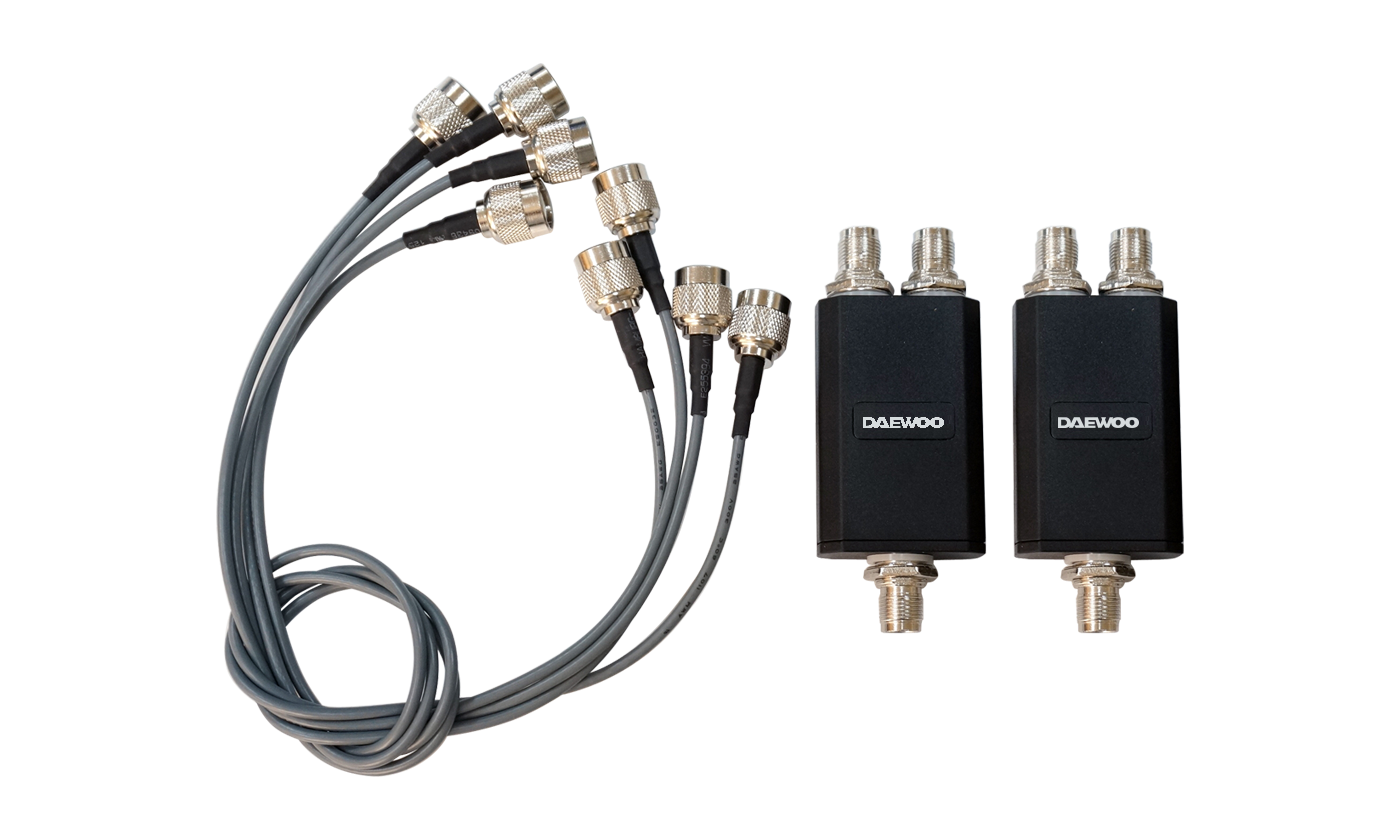

DWS-AD50F

Passive Antenna Divider (Pack)

The DWS-AD50F is a passive 1-to-2 Antenna Splitter designed for integrating two sets of wireless receiver antennas covering the UHF 500-960 MHz frequency range. This splitter ensures stable and reliable signal distribution, making it ideal for various professional audio applications.

Tech Specification

Model DWS-A50F
Frequency range UHF 500 – 960 MHz
Impedance 50 Ω
Gain Attenuation 3.5 dB (typ.)
Connector TNC female (1 input + 2 outputs) or
BNC female (1 input + 2 outputs)
Dimensions (mm) 99 × 40 × 18.5
Weight (g) 189
