DWXT40B20R-L

DCS-CT6

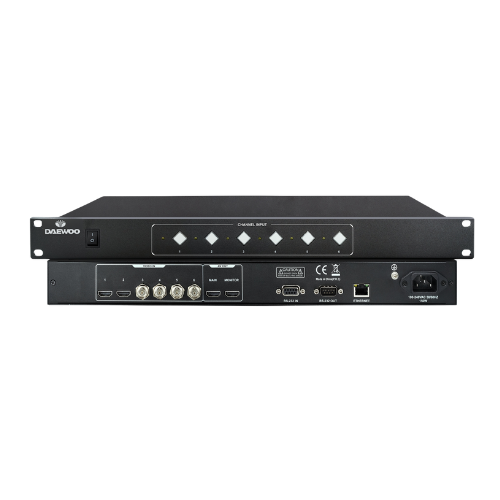

#6 Camera Auto tracking processor, 2x HDMI and 4xSDI, HD

The compact system integrates HD video, supporting HD/SD signals with automatic detection. It enables simultaneous recording of video, audio, and screen signals in MP4 format, with local preview and playback. A 2-inch LCD display recording, network, and storage details. Features include HDMI and mirrored VGA outputs, automated camera tracking, and live broadcasting over LAN or Ethernet. The 6x1 seamless scaler switcher supports 1080P@60Hz output, seamless transitions, and image freezing. RS232 and Ethernet ports allow integration with control systems for enhanced functionality.

Enquiry

Features

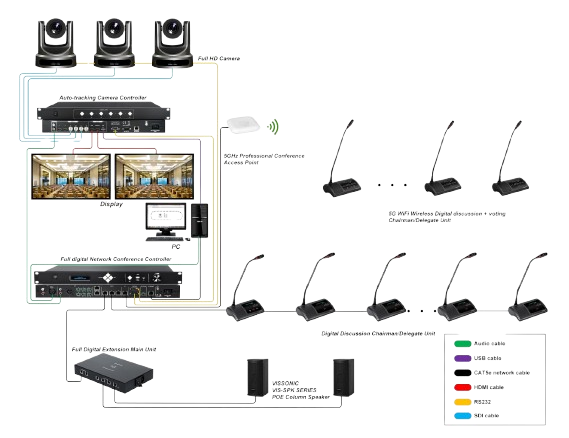

FEATHURES

  • The system is compact and portable for easy transport and setup.
  •  It supports both high-definition and standard-definition video and audio signals with automatic detection.
  • Multiple input and output interfaces, including VGA and USB, provide versatile connectivity.
  • Simultaneous recording of video, audio, and computer screen signals is possible with flexible layout options.
  • Local preview and playback functions allow real-time monitoring of recordings.
  • A built-in 2-inch LCD screen displays key information such as recording status, channel activity, and network details.
  • MP4 video file generation ensures compatibility with various playback devices.
  • Remote management and control are available through a PC for enhanced functionality.
  • Dual output options, including HDMI and VGA, support video conferencing and directed interface outputs.
  • Automated camera tracking is supported when integrated with compatible conference controllers.
  • Live broadcasting over LAN or Ethernet enables real-time sharing.

FUNCTIONS

  • Supports a maximum output resolution of 1080P@60Hz.
  • Enables seamless switching without jitter or screen blanking.
  • Provides an adjustable image-freezing function with a duration range of 1 to 6 seconds.
  • Allows a minimum freezing time of 0.5 seconds, with durations below this disabling the feature.
  • Includes RS232 and Ethernet ports for enhanced connectivity.
  • Integrates with central control systems and conference systems.
  • Supports automated camera tracking functionality.

Tech Specification

Model DCS-CT6
Power DC 12V 3A
Buttons Soft-touch silicone buttons
Power Consumption  0.6W max
Operating Humidity 20% to 80% (non-condensing)
Display 128×32 LCD
Signal format/ Input(s) SDIx4 | HDMIx2
Pixel bandwidth 165MHz
Output Connector HDMI-A & Mirror VGA
Dimensions (mm) 483L x 260W x43.6D
Weight 3kg

Compatible

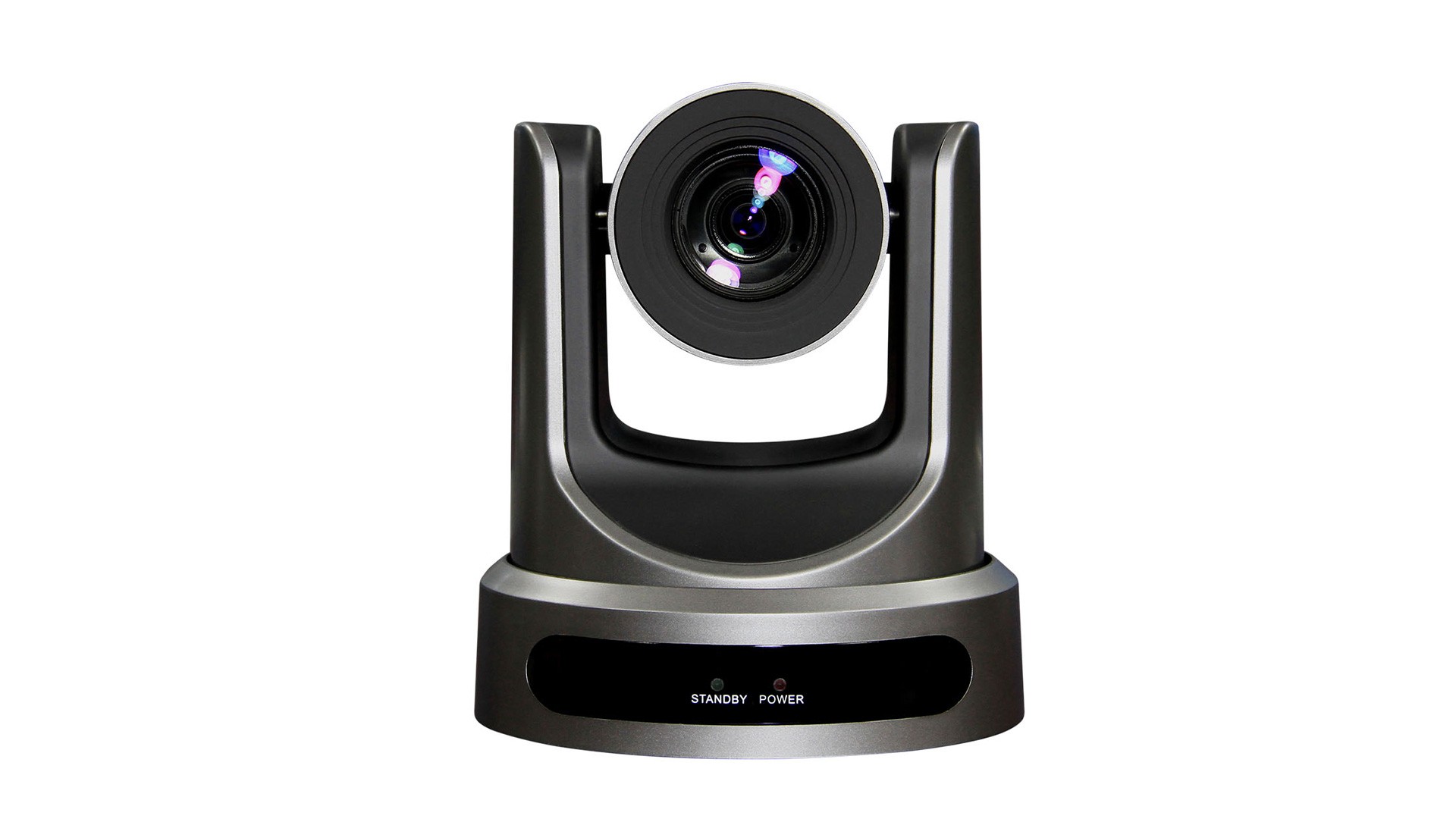

DCS-12X
