DCS-CTR5

#5 Camera Auto tracking processor, 5x HDMI IN with 1TB HDD Conference recorder, 4K

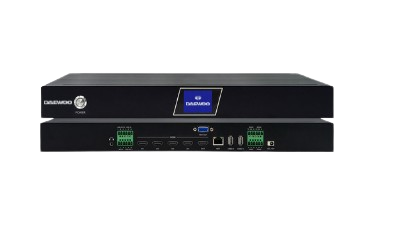

A portable device that captures and encodes up to 5 channels of 4K video, with HDMI inputs/outputs for video conferencing and live broadcasting. It features a 2-inch LCD, supports HD/SD signals, automatic layout configuration, and generates MP4 recordings. The system offers seamless switching, adjustable image freezing, and supports camera auto-tracking via RS232/Ethernet integration. It also enables live streaming over LAN or Ethernet.

Enquiry

Features

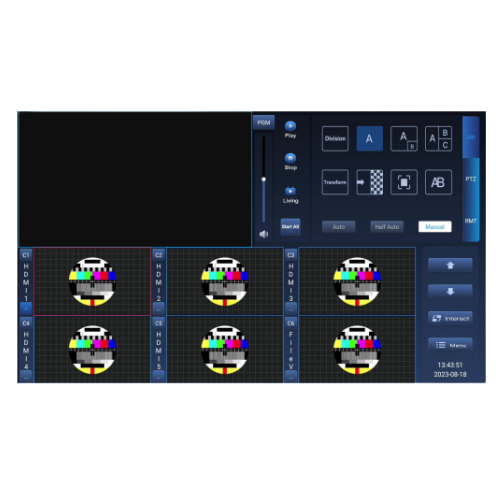

FUNCTIONS

  •      Channel Number Indicators: The device should allow users to turn on or off the channel number indicators as needed. This can be controlled via physical buttons, RS232, Ethernet, or software commands.
  •       Seamless Scaler Switcher: The system must support a 6x1 seamless scaler switcher with a maximum output resolution of 1080P at 60Hz. Switching between input sources should be smooth, with no jitter or blank screens.
  •       Image Freezing Function: Users should be able to freeze the image for a duration between 1 to 6 seconds. If the freezing time is set below 0.5 seconds, the function should automatically turn off.
  •       RS232 and Ethernet Integration: The device should include RS232 and Ethernet ports to enable external control and integration with a central controller.
  •      Camera Auto-Tracking: The system must be compatible with CLEACON and CLASSIC-D series conference main units to support automatic camera tracking functions.

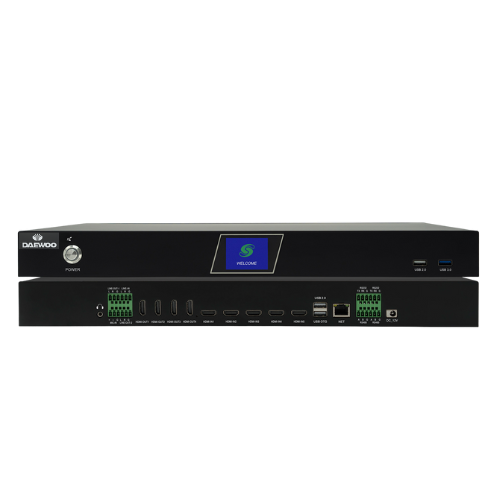

FEATHURES

  •      The device captures and encodes up to five channels of 4K video signals, ensuring high-quality video processing.
  •           It maintains full 4K resolution from the point of capture to recording and output for a seamless experience.
  •       It includes five HDMI inputs and four HDMI outputs, allowing multiple video conference displays.
  •       A 2-inch LCD screen provides real-time monitoring of recording and broadcasting status.
  •       The screen also displays important details such as channel information, network status, and storage capacity.
  •       The system integrates high-definition video, audio, USB, and other input/output interfaces for flexible connectivity.
  •       It features automatic detection of HD and SD signals, adjusting the layout dynamically.
  •       Users can record video, audio, and computer screen signals while also enabling local preview and playback.

Tech Specification

Model DCS-CTR5
Power supply DC 12V 3A, adapter
Chassis Specifications 1U
Size 482 (L) × 270 (W) × 45 (H) mm
Connector BNC female connectors
Pixel bandwidth 165MHz
Weight 3kg
