DWXT40B20R-L

DCS-M330

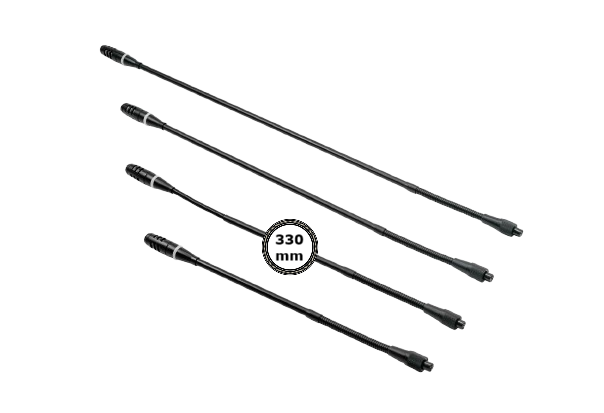

Pluggable Gooseneck Microphone 330mm

The microphone features a precise directional mini design for clear, focused sound capture, with a two-color LED indicator (red for speaking, green for chairman approval). It includes an anti-wind foam cover to reduce noise and a secure screw-lock socket for stable connections. Advanced acoustic technology ensures high-quality audio, while the robust design enhances system reliability and communication efficiency, making it ideal for professional conferencing environments.

Enquiry

Features

FEATURES

  •       The precise directional microphone head has a compact mini design.
  •        It includes an integrated LED ring indicator for enhanced visibility.
  •        The microphone is equipped with an anti-wind foam cover for optimal sound capture in various environmental conditions.
  •       It boasts a strong audio collection capability, ensuring clear sound in different settings.
  •       This microphone is compatible with different microphone lengths.
  •       The quick installation design features a standard 3-pin Canon male XLRM connector at the peak terminal.
  •       It integrates seamlessly with any conference microphone with a 3-pin Canon female XLRF socket.
  •       The microphone offers superior sound insulation, minimizing feedback and howling, even at maximum gain.
  •       Its easy-to-adjust, durable, and flexible gooseneck structure allows rapid positioning and secure fixation in any desired orientation.

FUNCTIONS

  •  The microphone includes a two-color LED indicator for clear status communication.
  • The red LED signals that the microphone is in active speaking mode.
  •  The green LED indicates that the user must wait for chairman approval before speaking.
  •  It features a screw-lock socket to ensure a secure and stable connection for removable microphones.
  • This design prevents accidental disconnections, providing reliability during use.
  • The robust construction enhances the overall system reliability and stability.
  •  The LED indicators offer clear, intuitive feedback to the user, improving communication efficiency.
  •  The system is optimized for professional conferencing environments with seamless integration of technical features.
  •  The advanced features ensure smooth operation for effective audio capture and management.

Tech Specification

Model DCS-M330
Directivity Cardioid
Sensitivity -46dBV/Pa
Frequency response 30Hz~20KHz
Equivalent noise 20dBA (SPL)
Signal-To-Noise Ratio Ref ≥96dB
Microphone Type Condenser
Working temperature 0~45℃
Storage temperature -20~50℃
Weight 62g
Length 330mm
Color black
