DWXT40B20R-L

DCS-MDA

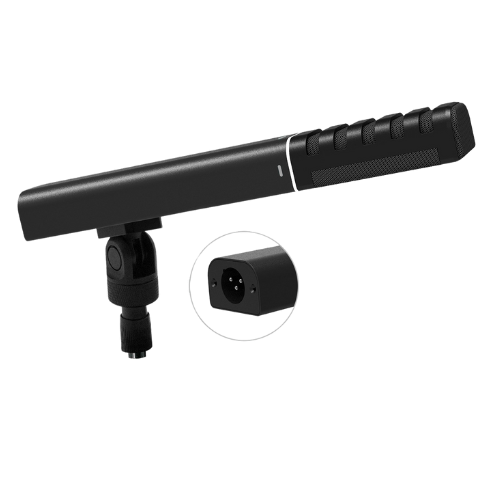

Short Square Shape MIC, with Digital and Analog outputs, Long distance voice pickup

This compact, low-profile microphone offers long-distance voice pickup (up to 80cm) with both digital and analog outputs for reliable backup. It features ON/OFF light indicators on both sides and allows for 4-direction angle adjustment (90° left-right, 120° up-down), ensuring optimal positioning and uninterrupted audio transmission.

Features

FEATURES

  •  The product features a compact, square     design with a modern, low-profile structure.
  •  It is ideal for placement in front of a speaking individual.
  •  The microphone offers long-distance voice  pickup capability, up to 80cm, ensuring clear sound capture.
  •  It is equipped with both digital and analog outputs, providing reliable backup.
  •  The dual outputs prevent any audio  transmission disruption in the event of a fault in one audio line.
  •  The microphone includes ON/OFF light indicators on both sides for easy monitoring.
  •  It is highly adjustable, allowing for a 4-direction angle change.
  •  The microphone allows for 90° rotation from left to right and a 120° tilt from up to down.
  •  This ensures optimal positioning for diverse environments.

Tech Specification

Model DCS-MDA
Directivity Cardioid
Sensitivity -37dB+/-3dB@1KHz (0dB=1V/Pa)
Frequency response 60Hz~17KHz
Mic Capsule 2
Input impedance 200 Ohms
The maximum sound pressure 125dB at 1KHz 1% T.H.D
Power supply 9-48V Phantom Power
External interface 6-pin/XLR
Size 36*24*216 (mm) WxHxL
Weight 180g
Color Matte black
