DWXT40B20R-L

DCS-MDM

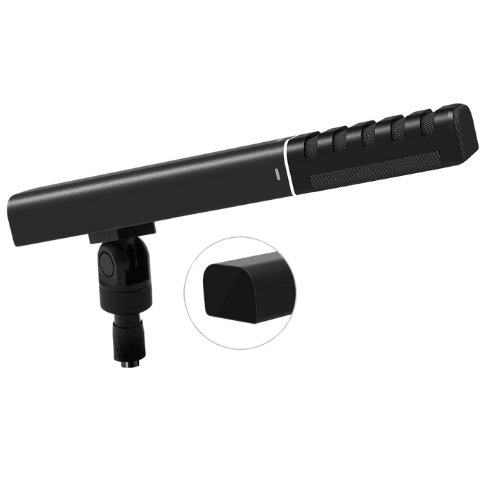

Short Square Shape MIC, with Long distance Voice Pickup

This compact, low-profile microphone offers 80cm long-distance voice pickup, ON/OFF light indicators on both sides, and 4-direction angle adjustability (90° left-right, 120° up-down) for flexible positioning and clear audio capture.

Features

FEATHURES

  •       The microphone features a short, square form factor with a modern, low-profile design.
  •        It supports long-distance voice pickup of up to 80 cm for clear audio capture.
  •       Mice ON/OFF light indicators on both sides provide visual status indication.
  •       The microphone offers 4-direction angle adjustability for flexible positioning.
  •        It allows 90° rotation from left to right and 120° tilt from up to down.
  •        Designed for versatile setups, it ensures enhanced audio capture in various environments.

Tech Specification

Model DCS-MDM
Directivity Cardioid
Sensitivity -37dB+/-3dB@1KHz (0dB=1V/Pa)
Frequency response 60Hz~17KHz
Mic Capsule 2
Input impedance 200 Ohms
The maximum sound pressure 125dB at 1KHz 1% T.H.D
Power supply 9-48V Phantom Power
External interface 6-pin/XLR
Size 36*24*216 (mm) WxHxL
Weight 180g
Color Matte black
