FEATHURES

•       The system accommodates up to 64 interpretation channels, including the floor channel, and supports up to 1,000 translation units.
•       It features digital audio technology with built-in high-speed DSP processing, offering a 48 kHz sampling rate and a frequency response of 30 Hz to 20 kHz.
•       The metal casing is designed to resist interference from RF signals, ensuring reliable performance.
•       Hot-swappable and plug-and-play functionality allow for easy installation and maintenance.
•       The detachable microphone design provides flexibility for different usage scenarios.
•       Users can adjust the volume of speakers and headphone jacks separately for a customized experience.
•       The system supports both direct and relay interpretation, providing versatility for multilingual events.
•       A channel interlock feature ensures that only one microphone can be active per channel at a time.
•        Two interpreters can use a single unit simultaneously, with separate headsets and individual volume controls.
•       The system offers Interlock and Override modes to suit different booth operation needs.
•       The COUGH key allows users to mute the microphone temporarily, while the SLOW button ensures smoother communication.
•       Seven quick input buttons and A-B-C shortcuts enable rapid selection of input and output channels.
•       Language and system settings can be configured directly from the interpreter desk menu.
•       The system supports IC card authentication and includes a timing function to track interpretation duration.
•       Additional features include SMS functionality and a tea request option for convenience during sessions.
•       The system complies with ISO 20109, ISO 2603, and ISO 4043 standards, ensuring it meets global requirements.

FUNCTIONS

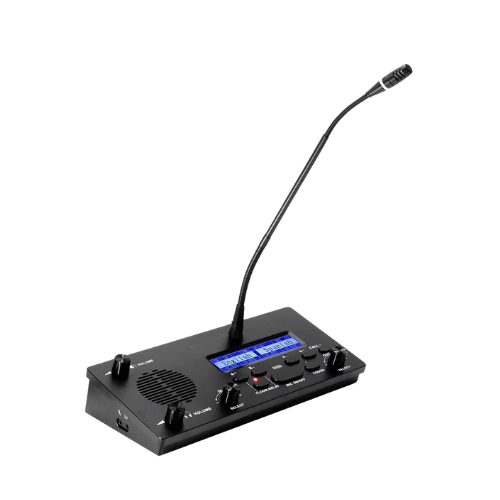

•       The microphone is mounted on a flexible stem and includes a light ring for status indication.
•       Headphone and speaker volume can be adjusted using separate control knobs.
•       Buttons 1 to 7, with an LCD display, allow quick selection of input channels and display corresponding channel numbers and listening languages.
•       A-B-C channel selection keys, with an LCD display, enable fast selection of output channels and languages for translation output.
•       The IN knob, with an LCD display, allows quick switching between the floor language and selected channels.
•       The OUT knob, with an LCD display, facilitates fast switching between output channels.
•       The microphone activation key includes an LED status indicator.
•       A COUGH key temporarily mutes the microphone when pressed.
•       The FLOOR-RELAY key enables quick switching between the floor language and relay language.
•        A call key provides two-way voice communication between the interpreter and the operator.

             Interconnection Ports

•       Two 3.5 mm earphone jacks and two 3.5 mm microphone jacks.
•      Two RJ45 ports for network connections.
•       Main power input and output ports with cascading capability and male/female connectors.
•      HDMI output interface for additional connectivity.
