DCS-VOT-S

Conference Voting Management Software module, Voting management, Delegate & Seat arrangement

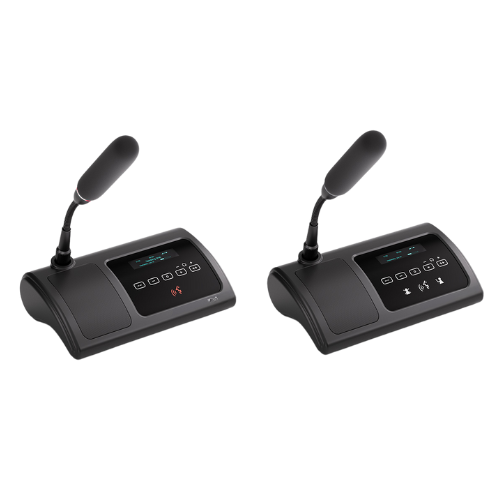

This sleek, modern device features a touchable interface and allows wireless setup within minutes. It includes 5 voting buttons, a detachable battery with 24-hour usage (40-hour standby), and a DC connector for direct power. The unit offers a high-fidelity speaker, optional 3-channel interpretation, pluggable microphones, and a 2.23-inch OLED display with signal, battery, time, and date indicators.

Enquiry

Features

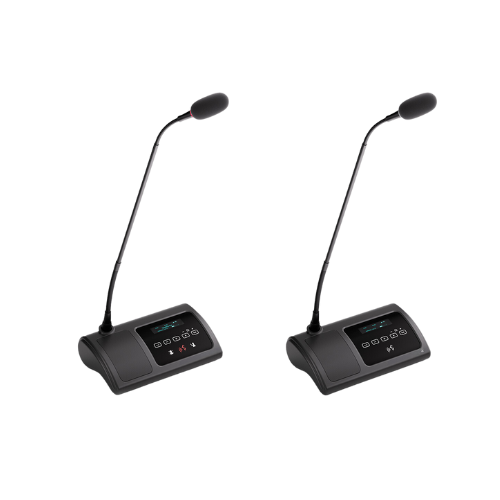

Ease of Use

The system is no additional cabling and testing and run under the 25-meter radius of Wi-Fi signal which is full 360-degree coverage. All microphone units automatically identify the access point and communicate with WPA2 secure connection to ensure the conferencing safety.

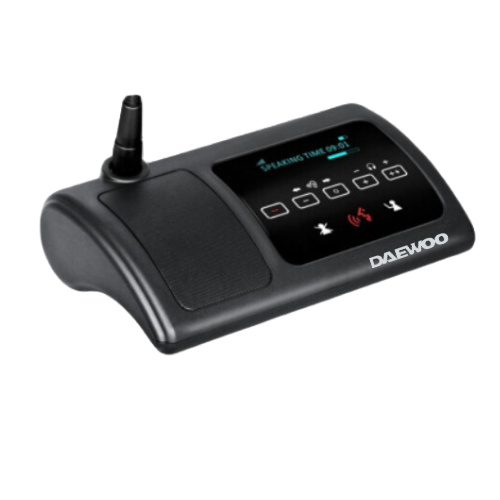

Compact yet versatile design

The product design reflects the elegant, yet compact and easy to use features. Conference unit features a graphical interface operating area, including lighting reminder, anyone can get started quickly. Easy to install, user-friendly touse, and is designed to ensure higher productive meetings.

Excellent legibility sound

Advanced voice processing technology, with the unique design of the microphone head, this unit can be accurate pick up and restore the human voice through a high-quality built-in speakers or an external PA system, original SOUND-LINK digital ring network technology, Automatic Gain Control Volume (AGC) / automatic frequency control (AFC) technology help reach higher volume without triggering the howling effect, ensures clear soundtoevery person in the room.

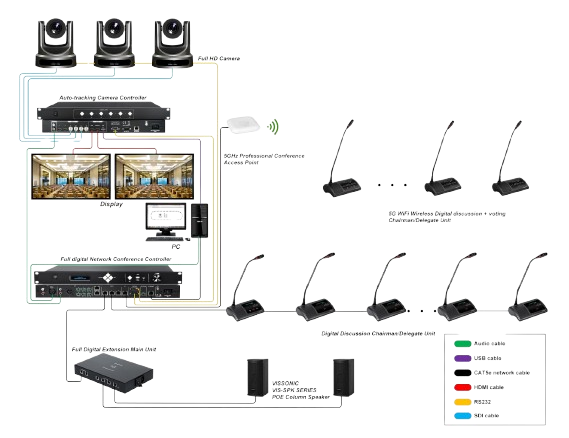

High tech intelligence platform

Timing function, over time speaking reminder, voting results multi-platform synchronization, network control andmeeting management, conference Smart reservation, worldwide firmware real-time updates, the integrationof ITtechnologies ensures smart conferencing platform, the CLEACON is one of them.

Tech Specification

Model

 DCS-VOT-S
Button  Touchable interface
Sensitivity  -46 dBV / Pa
Display OLED display 128 × 32
Maximum power consumption  2.0W
Directivity  0 ° / 180 ° 20 dB (1 kHz)
Headphone load 16Ω
Headphone volume 10mW
Frequency response : 20 ~ 20000Hz
Dimension 195L × 120W × 60Hmm
Weight 1.1kg (with microphone)
