DWXT40B20R-L

DCS-DEC | DCS-DED

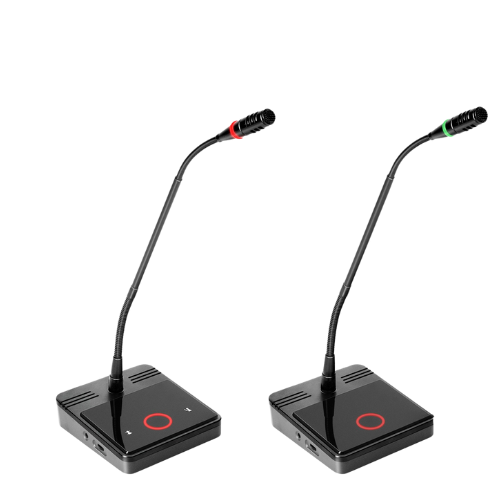

Digital Wired Discussion Chairman | Delegate Conferencing Unit(s)

The advanced digital ring network technology provides seamless, fully digital signal transmission for modern conference systems. Supporting up to 64 audio channels via a single CAT5e cable, it ensures high-fidelity sound with lossless transmission, a 48kHz sampling rate, and a 20Hz-20kHz frequency range. Each microphone unit offers independent audio and ID outputs with role-based voice separation. The system manages up to four conference zones and supports cascading for larger setups, with a robust network ensuring uninterrupted performance during unit changes. Features include adjustable microphone sensitivity, 16-band EQ, automatic gain control, feedback suppression, noise gating, zoned audio output, echo cancellation, USB recording, and integrated noise reduction. Optional modules enable seamless integration with industry-standard systems, making it ideal for advanced audio-visual applications.







Enquiry

Features

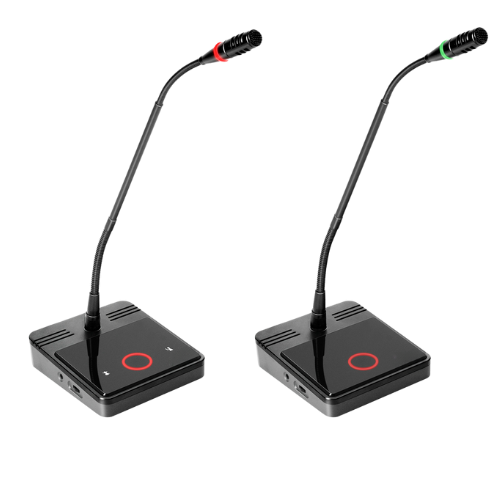

FEATHURES

  •  The unique SOUND-LINK digital ring network technology achieve full-digital signal transmission andprocessing.
  •  Stylish, low profile design with touchable interface.
  • Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
  • The cable connection of MIC units are either hiding underneath or from the rear of the unit, makes it, convenient for different request of installation.
  •  Internal high-fidelity loudspeaker.
  •  Head-set interface in both sides with volume adjust.
  • Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference.
  •  “Dynamic-Loop-Network” connection makes the system always working perfectly.
  •  The unique SOUND-LINK digital ring network technology achieves full-digital signal transmission andprocessing, completely avoiding the RF interference from cell phone or similar devices.
  • “Dynamic-Loop-Network” connection makes the system always working perfectly.

FUNCTIONS

  •       Digital extension main unit allows expansion to   up to 5200 discussion units.

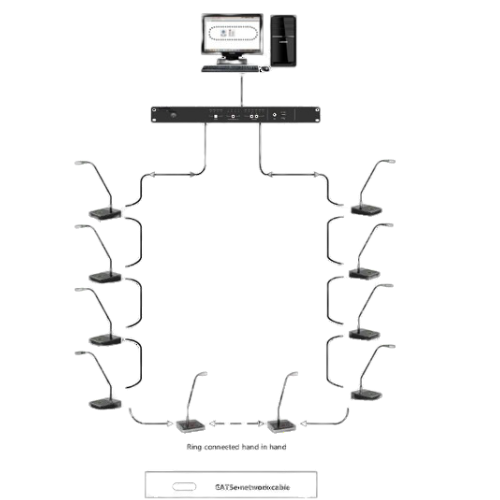

  •       "Loop-Network" topology ensures independent ID assignment for each unit to prevent conflicts.
  •       Wired discussion units connect easily to the controller for quick delegate additions.
  •       Full-digital networked DSP conference system with 2-channel audio inputs (XLR or RCA) for local or remote video-conferencing.
  •       Supports up to 8-channel audio outputs (XLR, RCA, or Phoenix) for simultaneous interpretation or partitioned audio output.
  •       Optional audio input box connects condenser or dynamic microphones for added flexibility.
  •        Built-in multi-way internal communication with TCP/IP connectivity between controller and PC.
  •        RS232 central control manages microphone switching, priority settings, volume adjustments, and other controls.
  •        RS232/RS485 connections support PELCO/VISCA protocol for automatic camera tracking.
  •        Hot plug-and-play capabilities with automatic recovery features.
  •        Operates reliably across a wide voltage range (100V to 240VAC).
  •        Conference controller provides essential settings like microphone management, priority configurations, and volume controls without PC software.

Tech Specification

Model DCS-DEC | DCS-DED
Power 100V / 240V AC
Power consumption 12W
Maximum power consumption 150W
Frequency Response   20Hz ~ 20KHz
Noise ratio 80dB
Total harmonic distortion 0.05%
Channel Crosstalk 80dB
Dimensions (mm) 481L x 265W x46H
Colour Black

Compatible

DCS-DOC | DCS-DOD

Digital Wired Discussion Chairman | Delegate Unit(s) with button, Internal loudspeaker

DCS-1000

Digital Networked Conference Processor, Support Wired Conferencing units
