DWXT40B20R-L
DWXT40B20R-L

DCS-DMC|D

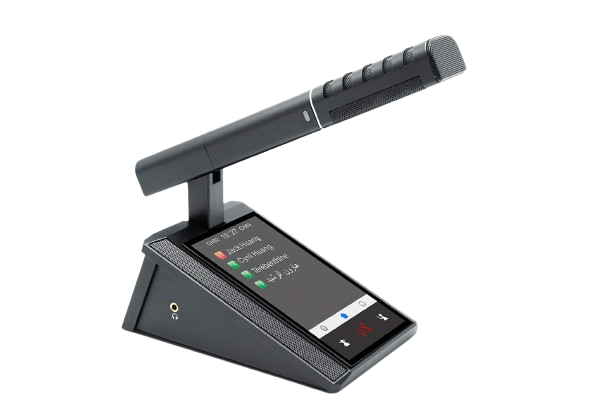

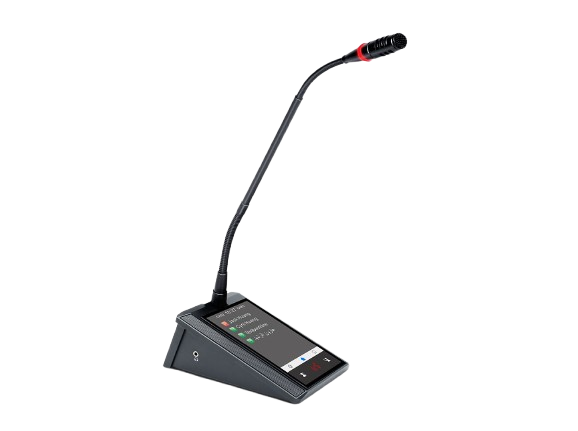

Digital Wired Discussion Chairman | Delegate Unit (5" Touch)

The digital advanced ring network technology supports 64 audio channels via CAT5e cable, offering 48kHz lossless transmission and a 20Hz-20kHz range for high-quality sound. Independent audio outputs, role-based voice separation, and robust zone management ensure uninterrupted operation. Key features include EQ tuning, noise gating, feedback suppression, auto-mixing, USB recording, and PoE speaker support, which are ideal for professional conferencing.

Enquiry

Features

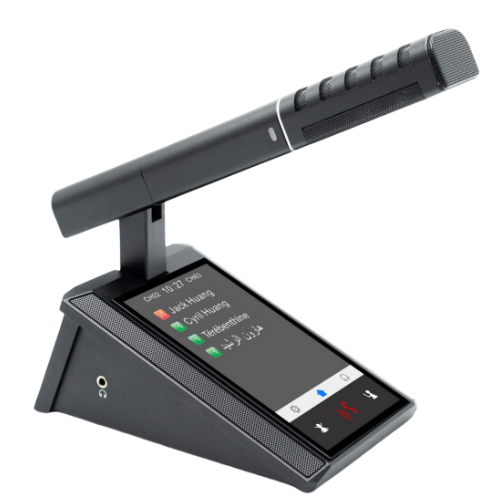

FEATHURES

  •  The SOUND-LINK digital ring network technology enables full-digital signal transmission and processing, using a single CAT5e cable to transmit up to 64 audio channels and other signals.
  •  All microphone units support audio and ID-independent output, working with voice recognition systems for voice role separation.
  •  High-fidelity sound quality is achieved through lossless audio transmission technology, with a 48KHz sampling rate and a frequency response of 20Hz–20KHz.
  •  A single conference controller can manage the independent control and merging of up to four conference rooms, with the option to cascade multiple controllers for larger room configurations.
  •   The redundant loop network connection ensures continuous system operation even with the addition or malfunction of conference units.
  •   Each unit's microphone sensitivity and 8-segment equalizer (EQ) are independently adjustable, while the conference controller provides a 16-segment EQ output for sound field adjustment.
  •  Features like pressure limiting, noise gate detection, automatic gain control (AGC), automatic feedback suppression (AFC), and auto-mixing technology are included for superior sound management.
  •  The system offers zone-based sound output with automatic adjustments for microphone placement, supporting long-distance pickups without feedback and providing echo cancellation for clarity.
  •  Two-way remote real-time communication is supported with other controllers or third-party video conferencing systems, along with USB recording, controller monitoring, and advanced noise cancellation for high-quality recordings.
  •  The system supports date and time management with a countdown speech feature, while an optional DANTE output module integrates with other DANTE-compatible equipment.
  •  It can drive 2x120W POE speakers directly and supports up to 16 POE speakers via extension modules.

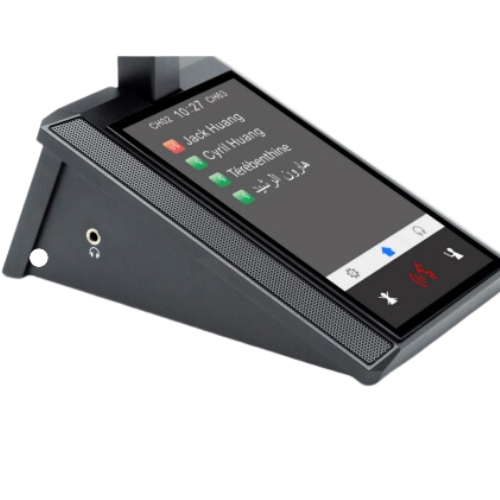

FUNCTIONS

  •  The system can expand to support up to 5200 discussion units using a "Daisy-chain-Network" connection.
  •  Each unit is independently assigned an ID to avoid ID conflicts.
  •  Only wired discussion units can connect to the controller for fast and easy addition.
  •  Provides two-channel audio input with XLR or RCA type for local audio or remote video conferencing input.
  •  Offers up to 8-channel audio output via XLR, RCA, or Phoenix type, suitable for simultaneous interpretation or partitioned output.
  •  Supports the addition of an audio input box to connect other condenser or dynamic microphones, giving users more options.
  •  Built-in multi-way internal communication function enhances system communication.
  •  Facilitates TCP/IP connection between the controller and a PC.
  •  RS232 central control enables microphone switch, priority, and volume adjustments.
  •  Supports RS232 or RS485 for sending PELCO/VISCA protocols to enable camera auto-tracking functionality.
  •  Features hot plug-and-play capability with an auto-recovery function.
  •  Operates on a voltage range of 100V~240VAC.
  •   Without PC software, the conference controller can still perform essential settings.

Tech Specification

Model DCS-DMC-D
Power 100V / 240V AC
Power consumption 12W
Maximum power consumption  150W
Frequency Response   20Hz ~ 20KHz
Noise ratio 80dB
Total harmonic distortion 0.05%
Channel Crosstalk 80dB
Dimensions (mm) 481L x 265W x46H
Colour Black

Compatible

DCS-DFC | DCS-DFD

Digital Wired Flush Mount Discussion Chairman | Delegate Unit
