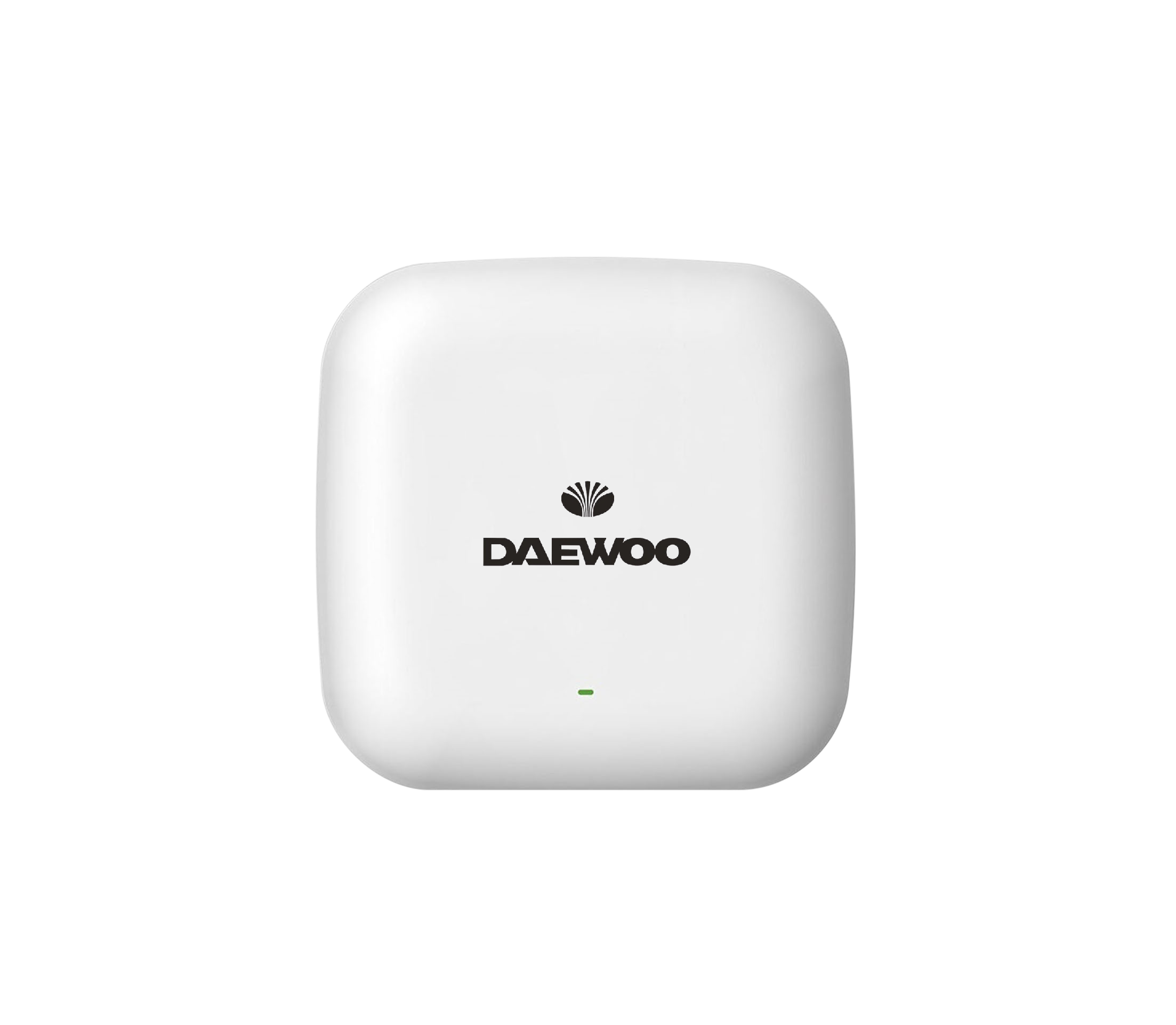

DWXT40B20R-L

DCS-AP5

5G wifi access point

The system features advanced digital transmission technology, delivering uncompressed audio with a 20Hz–20kHz range using professional microphones. It ensures secure communication with 128-bit encryption and supports up to six wireless microphones with high-fidelity audio. Control interfaces like RS485, RS232, and IP enable automated camera tracking and system integration. The built-in speaker mutes during microphone use to prevent feedback. Designed for scalability, it supports wired and wireless units, adaptive interference avoidance, and up to 5200 discussion units. With flexible audio I/O options, hot plug-and-play, and a wide voltage range, it ensures reliable and versatile performance for conferencing needs.

Enquiry

Features

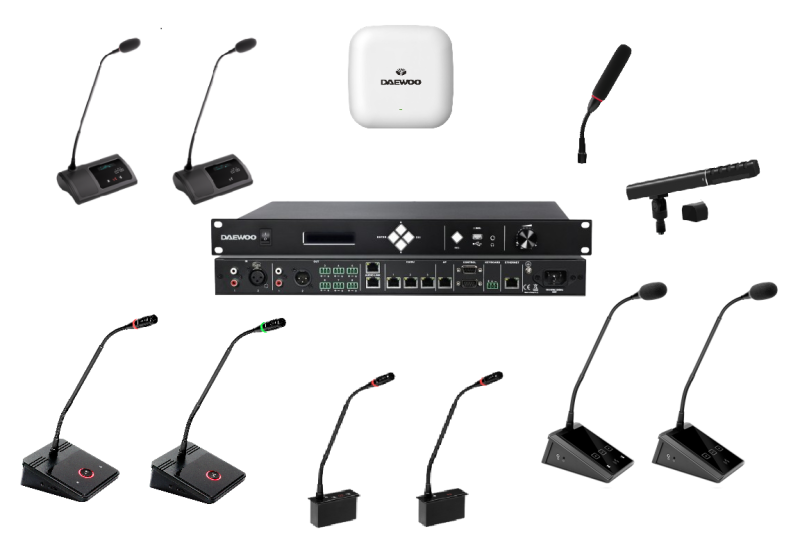

FEATHURES

  •        The system delivers uncompressed audio with exceptional clarity across a frequency range of 20Hz to 20kHz.
  •       It uses professional-grade microphones for high-quality sound capture.
  •        Robust 128-bit encryption ensures secure communication.
  •       Advanced filtering and hidden security layers prevent unauthorized access and interception.
  •        The wireless module supports simultaneous operation of up to six microphones.
  •       Integrated control interfaces include RS485, RS232, and IP for protocol communication.
  •       Automated camera tracking is enabled when integrated with compatible video systems.
  •      The built-in high-performance speaker features an automatic mute function during microphone use.
  •      Feedback is prevented for a seamless audio experience.

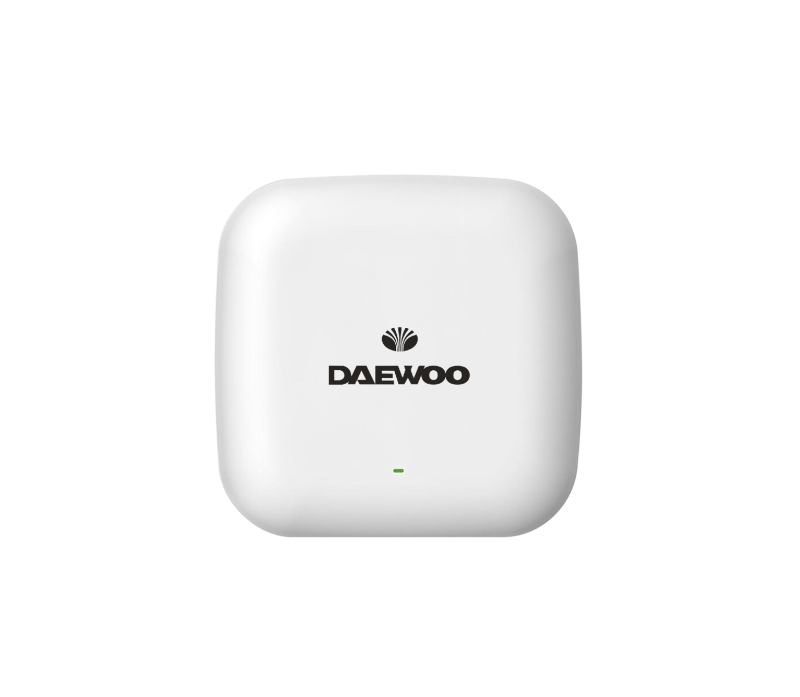

FUNCTIONS

  •      The system supports expansion to 5200 discussion units when connected to a full-digital extension module.
  •      Advanced loop-based connection architecture assigns unique IDs to each unit, ensuring seamless operation without conflicts.
  •       It supports both wired and wireless discussion units, allowing quick and efficient addition of participants.
  •      Up to eight wireless microphones can operate simultaneously using adaptive interference avoidance technology.
  •      The wireless technology complies with IEEE 802.11n Wi-Fi standards for 5GHz, ensuring robust performance.
  •      The system includes two audio input channels (XLR or RCA) for local or remote video conferencing.
  •       It provides up to eight audio output channels (XLR, RCA, or Phoenix) for simultaneous interpretation or zone-based output.
  •       Integration options include support for condenser or dynamic microphones, offering flexibility for user needs.
  •      Built-in multi-way internal communication enhances functionality.
  •       TCP/IP connectivity enables seamless integration between the controller and a PC.
  •       RS232 central control facilitates microphone management, priority settings, and volume adjustment.
  •       RS232 or RS485 interfaces support protocols for automated camera tracking.
  •       Features such as hot plug-and-play, auto-recovery, and support for a wide voltage range from 100V to 240VAC ensure reliable system performance.

Tech Specification

Model DCS-AP5
Power 100V / 240V AC
power consumption 12W
Maximum power consumption 150W
Frequency Response    20Hz ~ 20KHz
Noise ratio 96dBA
Total harmonic distortion  0.05%
Channel Crosstalk 85dB
Dynamic range 94dB
Ethernet control RJ45 connected to PC
Dimensions (mm 483L x 260W x43.6H
Weight 3kg
