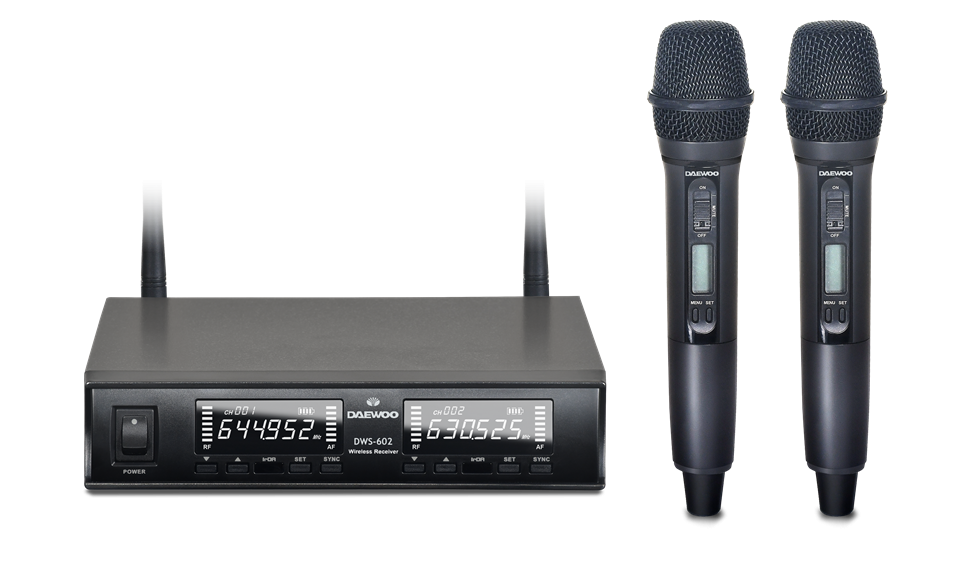

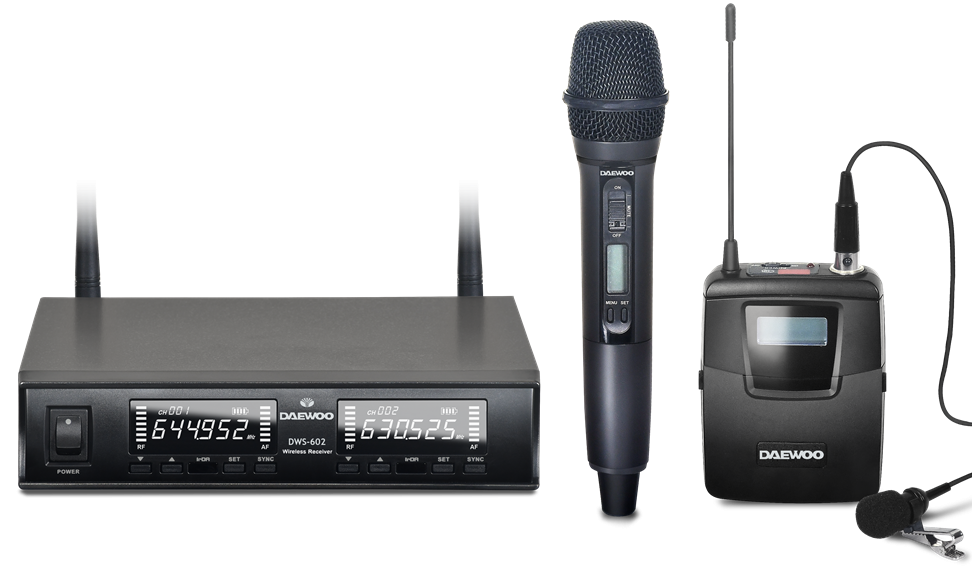

DWS-602

UHF Dual-Channel, Professional Wireless Microphone System

DWS-602 is a UHF Professional wireless microphone system with sophisticated and most advanced functions. The built-in channel-scanning works with the industry-leading channel synchronizing technology to rapidly complete setting of non-interference channels. High contrast LCD display on the front panel, with optional detachable UHF coaxial antenna make this system flexible in the most challenging spaces to improve signal performance, ensures stable and reliable signal reception and can be paired with passive splitters and powered distribution system, including battery status, RF signal status, and input volume of the connected transmitter to ensure the best sound quality. Easily complies various audio applications.

Features

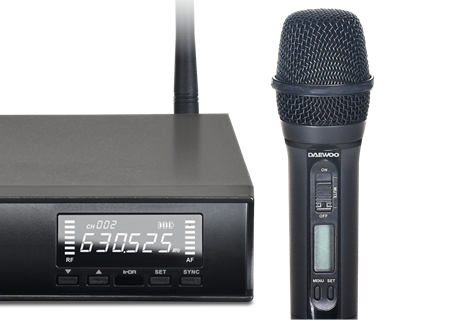

2-way Channel Synchronization

Two-way channel synchronization technology. After selecting a clean channel on the transmitter or receiver, a single button will quickly synchronize both units. 100 preset channels available for selection.

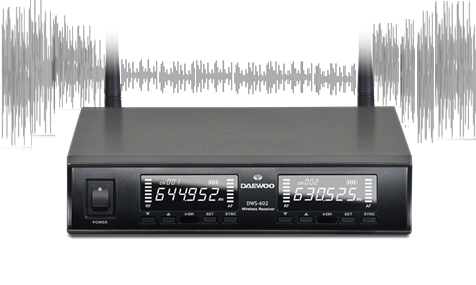

No more Noise

Adjustable SQ to increase receiver range with higher sensitivity and reduce interference with lower sensitivity. Pilotone, noise-detector, and squelch circuits prevent noise interference

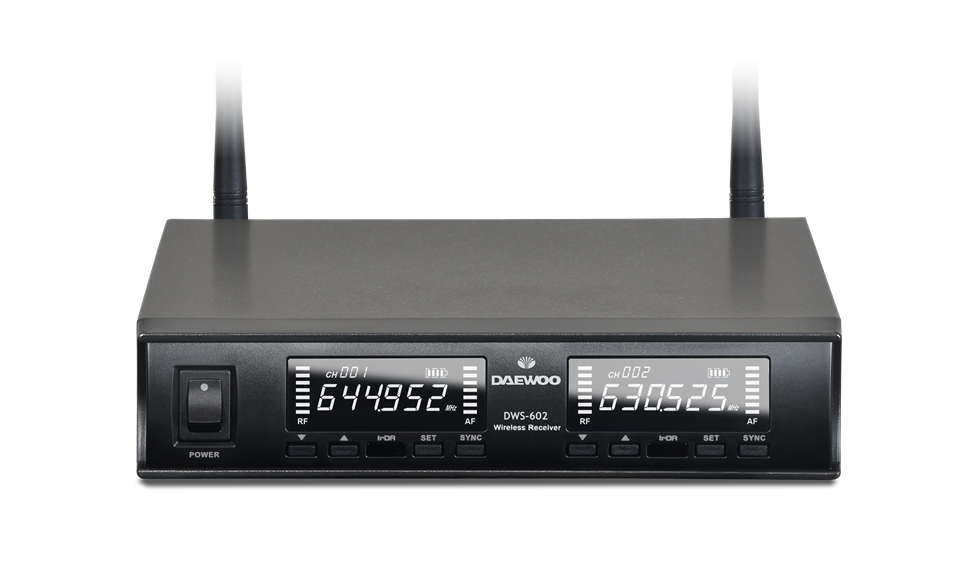

Real-time Display

High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter for the audio engineer to handle and ensure the best sound quality.

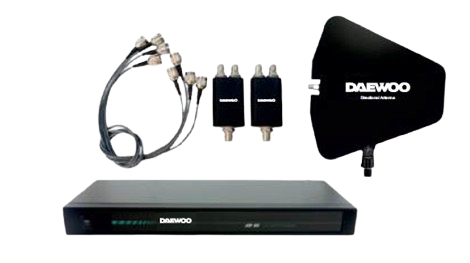

Antenna distribution system

UHF detachable antennas are designed to enhance wireless audio transmission range, covering county-specific the 500-960 MHz frequency band. It ensures stable and reliable signal reception and can be paired with adapters and the UHF antenna booster and antenna dividers for improved signal performance in various audio applications.

Tech Specification

Model DWS-602
Chassis EIA standard 19" (1/2RU)
Receiving mode Diversity
Frequency range UHF 500 - 960 MHz
Bandwidth 25 MHz
Channel Dual
Preset frequencies 100
Channel sync 2-way (RX ⇔ TX)
Frequency response 35 Hz - 18 KHz
Peak deviation ± 40 KHz
Sensitivity S/N 80 dBm at 10 dBμV
S/N ratio 120 dB(A)
T.H.D. 0.3% @ 1 KHz

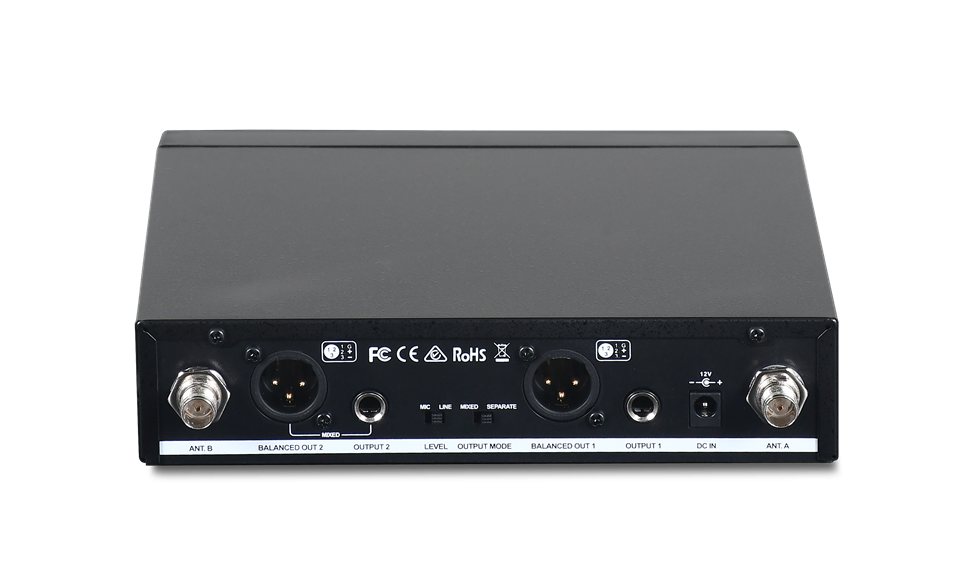

Receiving antenna Detachable at rear-end, TNC female.
Oscillation PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
Squelch Pilotone & Noise-cancelling dual-squelch circuit
Audio connector Balanced XLR and unbalanced Ø6.3mm
Audio Output Adjustment Gain control circuit for adjustment of output volume
Output level switch MIC-LINE
Power supply 12V DC / 1.0A
Dimensions (mm) 200 x 150 x 44
Weight (kg) 0.73

Compatible

DWS-FM801

Rear-to-Front Cables (Set)

DWS-AB80

UHF Antenna Booster

DWS-AD50F

Passive Antenna Divider (Pack)

DWS-AD85

UHF Wideband 4-Channel Antenna Divider

DWS-PAD70

UHF Wideband 4-Channel Antenna Divider with Power

DWS-RA80

UHF Dipole Omni-Directional Antenna

DWS-DA80

UHF Wideband Directional Antenna

DWS-83

UHF Wireless Telescopic Gooseneck Microphone

DWS-82

UHF Rechargeable Bodypack Wireless Microphone

DWS-81

UHF Rechargeable Handheld Wireless Microphone

Accessories

DWS-HC92

Dual-Slot Charging Dock
