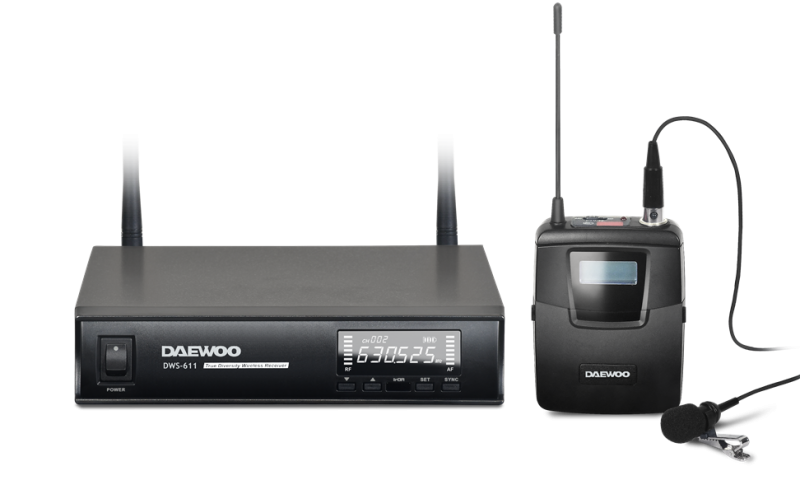

DWS-611

UHF Single-Channel, True Diversity Professional Wireless Microphone System

The DWS-611 utilizes digital frequency synthesis technology to quickly search for interference-free channels and sync frequencies with a single touch using the advance synchronization technology. Its automatic signal selection function ensures optimal performance and reliability, making it suitable for various professional applications, from conference rooms and auditoriums to outdoor events. The international standard half 19-inch chassis is durable and fits any professional environment.

Datasheet Instruction Manual Enquiry

Features

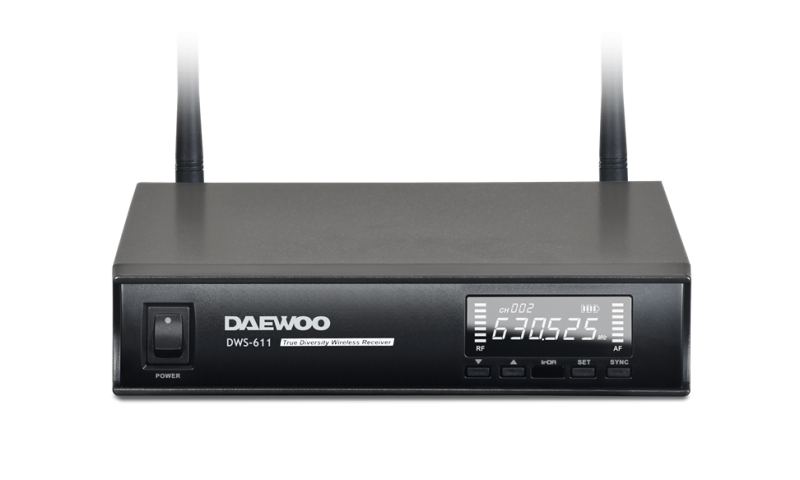

Channel Scanning and Quick Synchronization

The DWS-611 is equipped with advanced auto-scanning features that rapidly search and lock onto interference-free channels, ideal for multi-device environments, providing stable performance. The advance synchronization technology makes channel syncing quick and easy, allowing for bi-directional rapid channel synchronization with a single touch. This is perfect for business meetings, academic seminars, and street performances, ensuring every sound is clearly transmitted.

Squelch Design and High Sensitivity Reception

The DWS-611 adopts high-sensitivity reception technology, effectively preventing noise interference and providing exceptional reception performance. Its exclusive audio code and noise detection mute circuits significantly improve reception distance, adapting to various scenarios such as outdoor activities, sports events, and exhibitions, ensuring stable audio transmission. The advanced squelch design automatically silences the receiver when the signal is weak, avoiding noise output and enhancing user experience. Even in complex environments, it delivers clear audio quality.

Diverse Audio Outputs

The DWS-611 offers balanced (XLR) and unbalanced (Ø6.3mm) audio outputs, accommodating different audio equipment and application scenarios. Whether in artistic performances, public speeches, or educational and training environments, it provides clear and powerful audio output. Teachers can quickly connect playback devices for course audio, enhancing teaching effectiveness and interaction. This diverse output design ensures broad compatibility and flexible application of the equipment. Especially in multi-functional venues and events, it offers great convenience

High-Efficiency Anti-Interference Technology and Long-Distance Stable Transmission

The DWS-611 employs advanced digital audio processing technology to effectively resist environmental noise and frequency interference, ensuring clear and pure sound quality and stable audio transmission. Its efficient RF design allows for stable signal transmission over longer distances, making it an ideal choice for large events and extensive venue applications. Whether in stadiums, weddings, or school events, it provides seamless audio coverage, ensuring every corner of the audience can hear clear sound. These features make it the preferred equipment in high-demand environments.

Tech Specification

Model DWS-611
Chassis EIA standard 19" (1/2RU)
Receiving mode True Diversity
Frequency range UHF 500 - 960 MHz
Bandwidth 25 MHz
Channel Single
Preset frequencies 100
Channel sync 2-way (RX ⇔ TX)
Frequency response 50 Hz - 18 KHz
Peak deviation ± 40 KHz
Sensitivity S/N 80 dBm at 10 dBμV
S/N ratio 110 dB(A)
T.H.D. 0.5% @ 1 KHz
Receiving antenna Detachable at rear-end, TNC female.
Oscillation PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
Squelch Pilotone & Noise-cancelling dual-squelch circuit

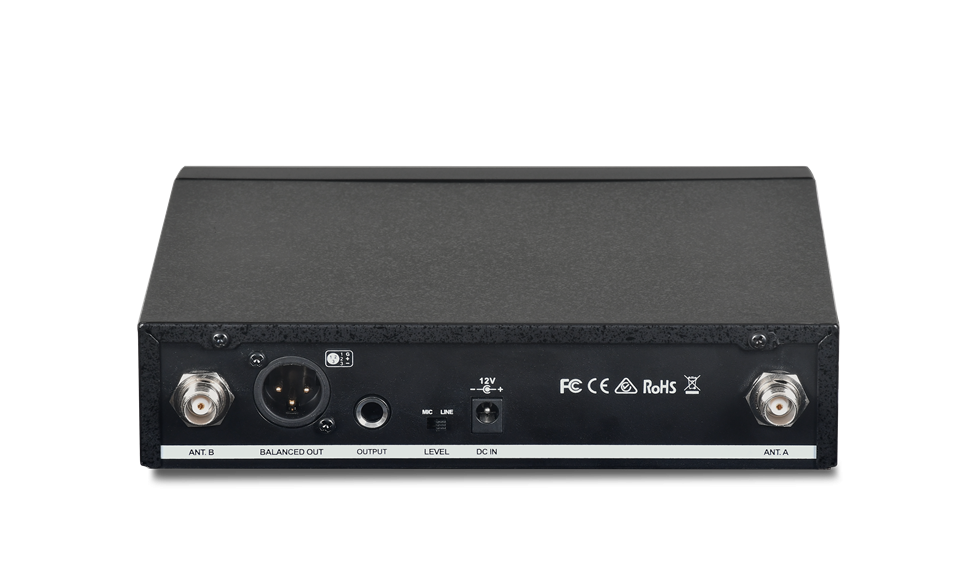

Audio connector Balanced XLR and unbalanced Ø6.3mm
Audio Output Adjustment Gain control circuit for adjustment of output volume
Output level switch MIC-LINE
Power supply 12V DC / 1.0A
Dimensions (mm) 200 x 150 x 44
Weight (kg) 0.73

Compatible

DWS-AD85

UHF Wideband 4-Channel Antenna Divider

DWS-PAD70

UHF Wideband 4-Channel Antenna Divider with Power

DWS-RA80

UHF Dipole Omni-Directional Antenna

DWS-DA80

UHF Wideband Directional Antenna

DWS-82

UHF Rechargeable Bodypack Wireless Microphone

DWS-81

UHF Rechargeable Handheld Wireless Microphone

DWS-FM801

Rear-to-Front Cables (Set)

DWS-AB80

UHF Antenna Booster

DWS-AD50F

Passive Antenna Divider (Pack)

DWS-83

UHF Wireless Telescopic Gooseneck Microphone

Accessories

DWS-HC92

Dual-Slot Charging Dock
