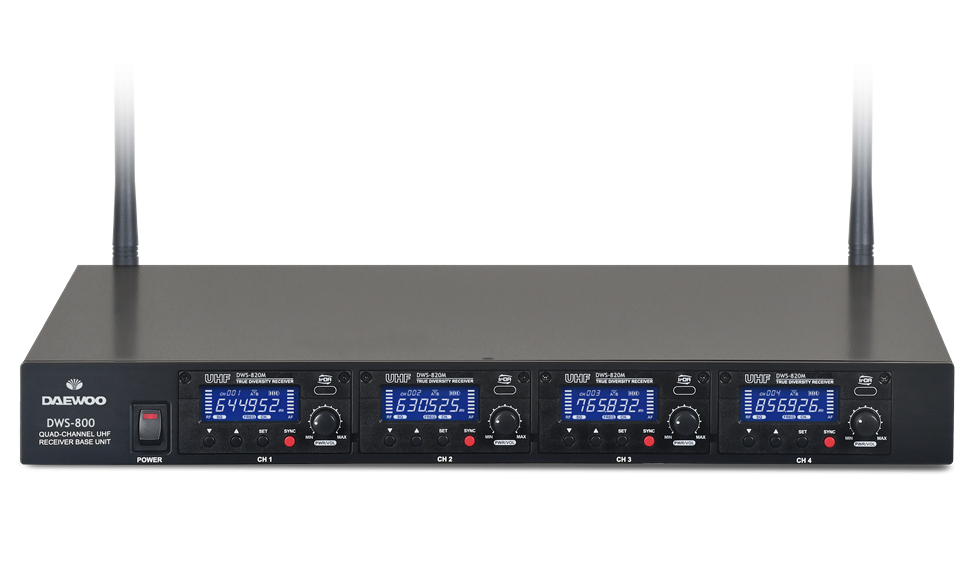

DWS-804

UHF Quad-Channel Modular Chassis, True Diversity Professional Wireless Receiver

The DWS-804 is a professional-grade 19-inch modular four-channel automatic selection receiver, designed to provide superior sound quality and stable performance across various settings, for indoor and outdoor events. Its international standard 1U metal chassis is robust and durable, making it suitable for any professional environment. The DWS-804 supports up-to four DWS-820M True Diversity Wireless modules, enabling users the flexibly, address diverse audio needs, ensuring excellent sound quality and stable performance in large business meetings, academic seminars, or outdoor cultural events.

Datasheet Instruction Manual Enquiry

Features

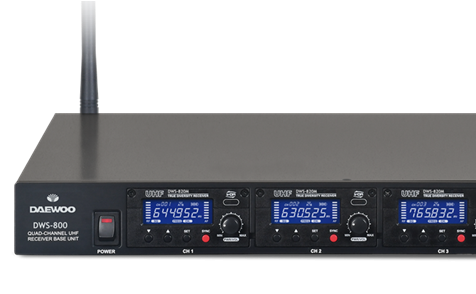

Convenient and User-Friendly design

The DWS-804 features an intuitive control interface, allowing for easy adjustment of output volume for connected devices to MIC or LINE level. Users can effortlessly manage these devices of various configurations including handheld, bodypack transmitters, and receiver modules during presentations, lectures, and live events, enhancing the quality of interactivity and speaking engagements. In the large venue application, the DWS-804 can be customized ad-hoc with hot-swap modules on-fly to avoid interference of UHF frequencies and bands, fully expandable and feasible. The control interface is simple, making it accessible even for non-professional users.

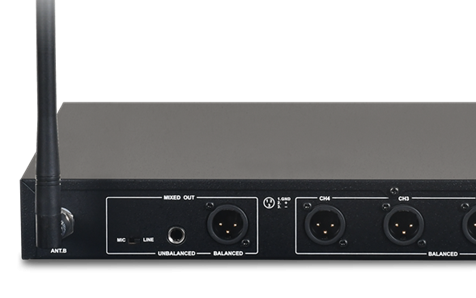

Easy connection with multiple audio output options

The DWS-804 provides single-channel balanced (XLR) and mixed unbalanced (Ø6.3mm) outputs, adapting to different audio equipment and application scenarios. Whether for cultural events or large speeches, it delivers clear and powerful audio output. This ensures long-term stability and reliability. Its multifunctional design and lightweight characteristics make it easy to carry and install, suitable for quick deployment needs, providing convenient audio solutions for various events.

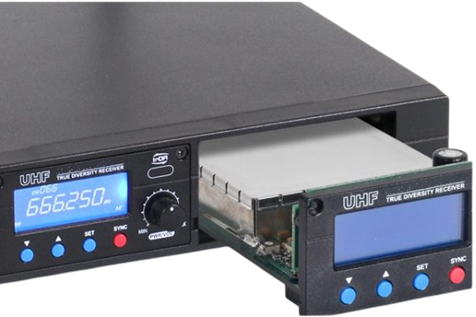

Great flexibility to meet various applications

The four-slot design of the DWS-804 offers high flexibility, allowing users to freely configure 1 to 4 modules according to their needs. Supported modules include:

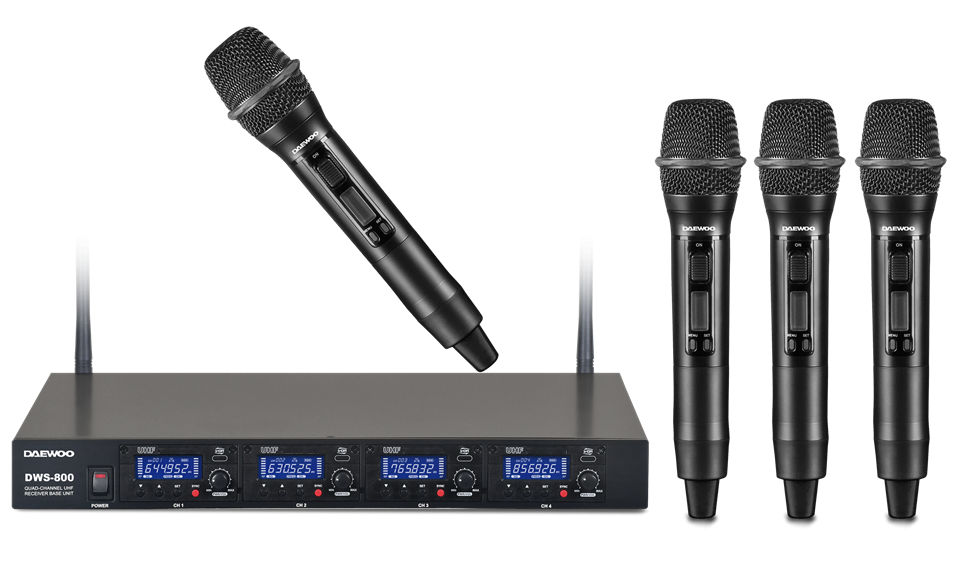

Wireless Receiver Module: DWS-820M comes with advanced auto-scanning features that quickly search and lock onto interference-free channels, ensuring stable performance. The advanced synchronization technology makes channel synchronization quick and easy, with one-click operation for two-way rapid channel synchronization. Suitable for conference rooms, auditoriums, and educational training. Whether in large business meetings or academic seminars, the DWS-804 can simultaneously connect up to four wireless microphones of any types, ensuring every speech is transmitted.

Tech Specification

Model DWS-804
Chassis EIA standard 19" metal 1U
Channel QUAD
Receiving antenna Detachable at rear-end, TNC female.

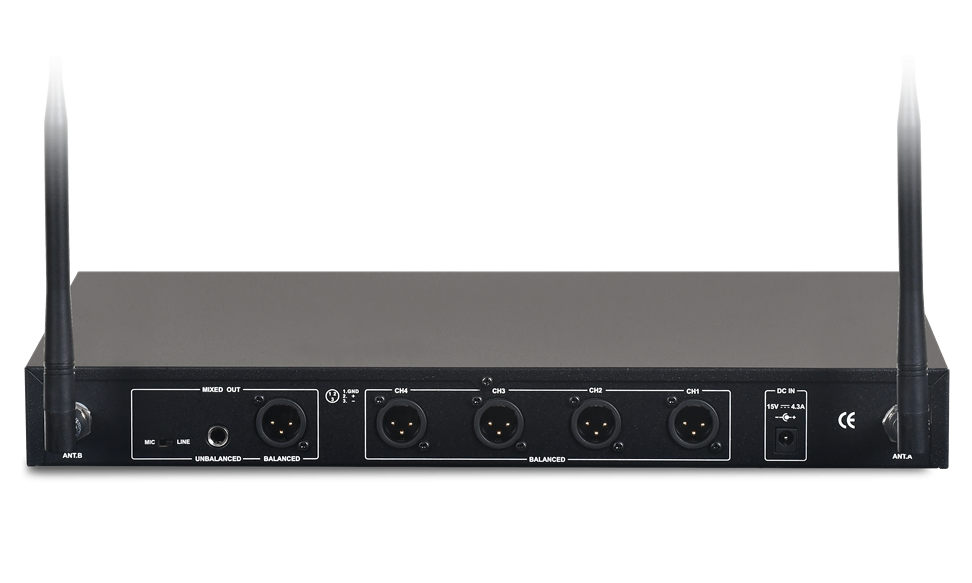

Audio output Balanced XLR and unbalanced Ø6.3mm
Audio Output Adjustment Volume knob for adjustment of output volume
Output level switch MIC-LINE
Power supply 15V DC / 4.3A
Dimensions (mm) 400 × 215 × 44
Weight (kg) 1.8

Compatible

DWS-83

UHF Wireless Telescopic Gooseneck Microphone

DWS-82

UHF Rechargeable Bodypack Wireless Microphone

DWS-81

UHF Rechargeable Handheld Wireless Microphone

DWS-FM801

Rear-to-Front Cables (Set)

DWS-AB80

UHF Antenna Booster

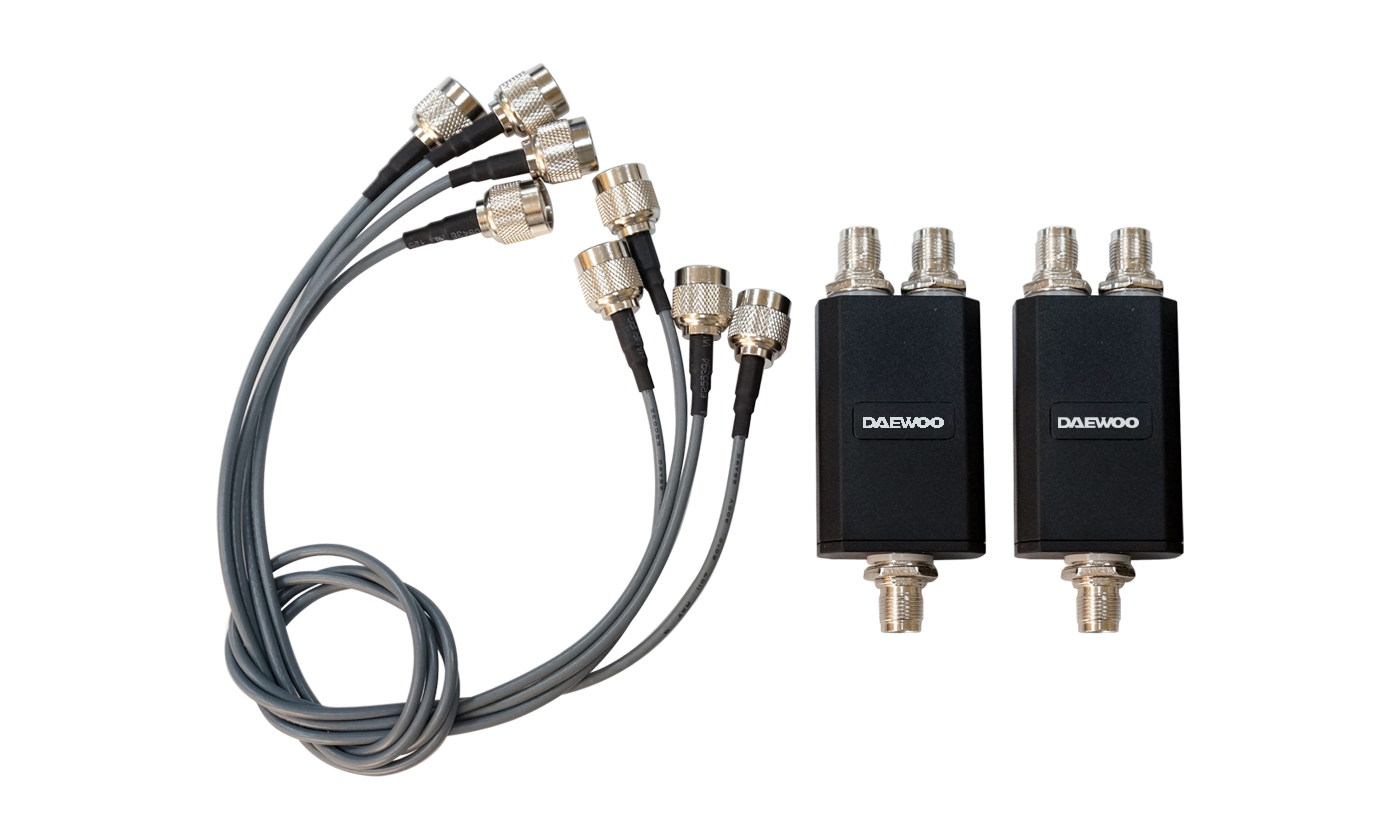

DWS-AD50F

Passive Antenna Divider (Pack)

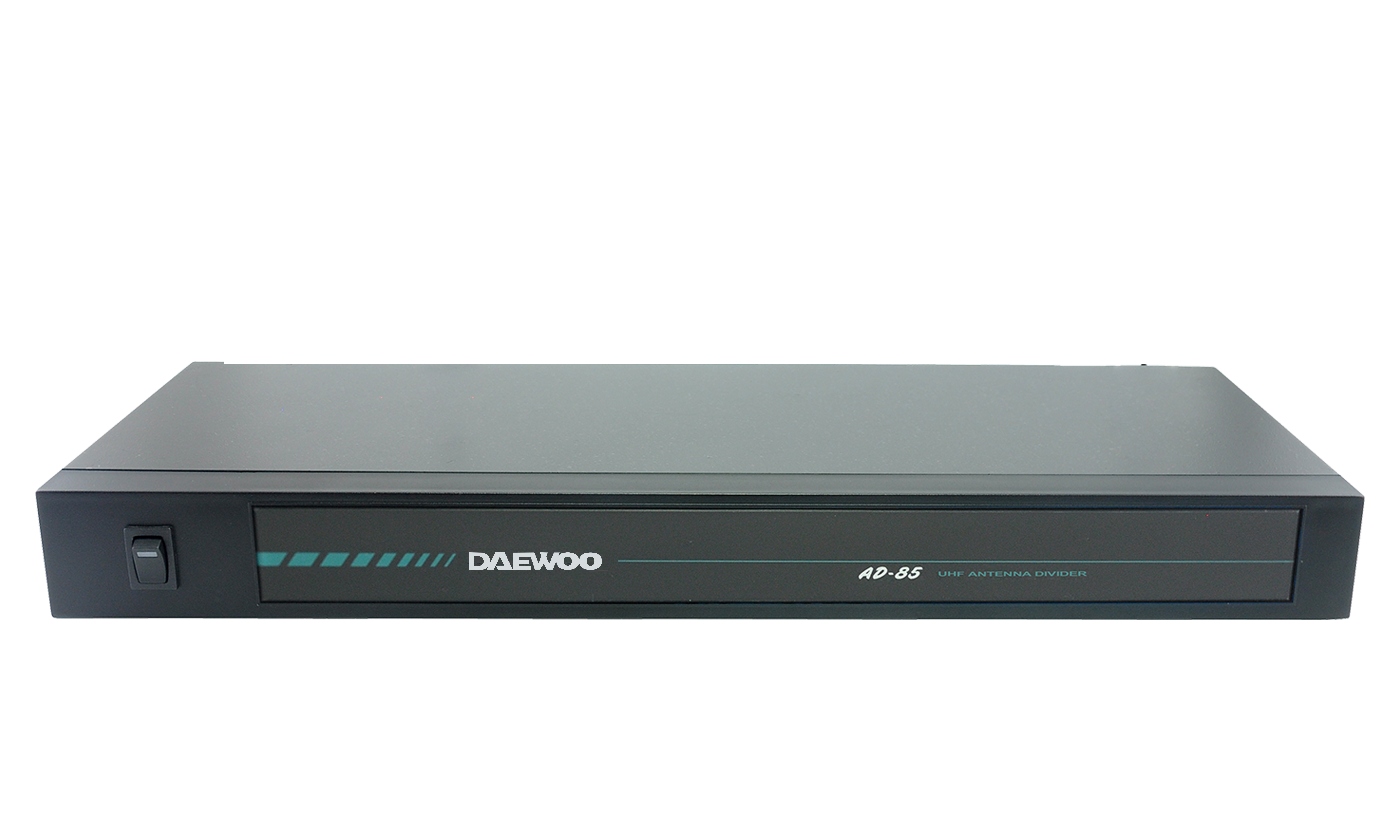

DWS-AD85

UHF Wideband 4-Channel Antenna Divider

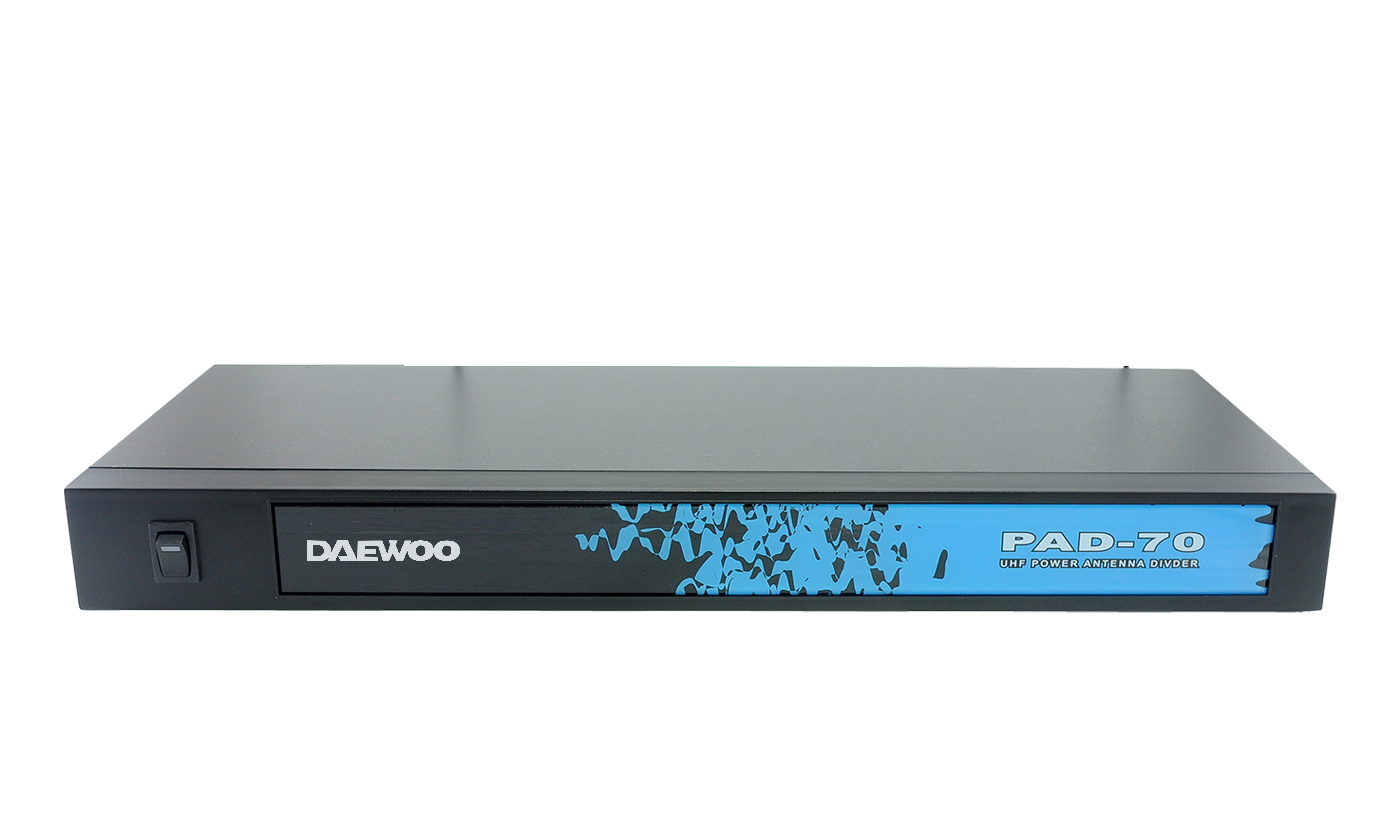

DWS-PAD70

UHF Wideband 4-Channel Antenna Divider with Power

DWS-RA80

UHF Dipole Omni-Directional Antenna

DWS-DA80

UHF Wideband Directional Antenna

DWS-820M

UHF True Diversity Wireless Receiver Module
