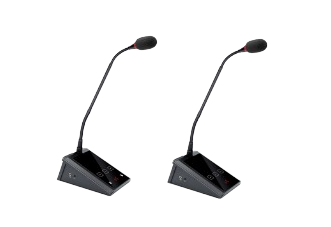

DCS-DWC | DCS-DWD

Digital Wireless Chairman | Delegate Conferencing Unit

The wireless conference system unit combines advanced technology with a user-friendly design, offering effortless setup and maximum efficiency for modern meetings. Powered by standard Wi-Fi technology, it seamlessly integrates with existing networks, ensuring zero interference by selecting from multiple frequency points. Its elegant design with anti-scratch and dustproof glass, maintains a flawless appearance even after extensive use.

Enquiry

Features

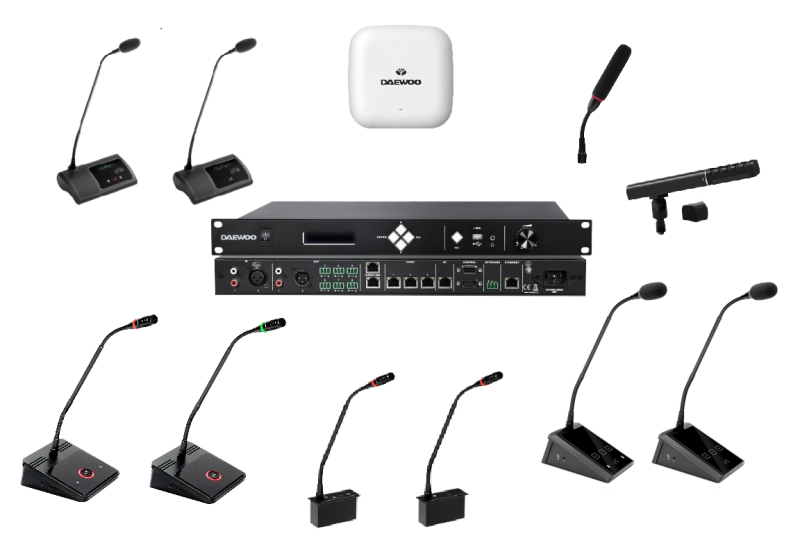

FEATHURES

  •      The advanced digital ring network technology ensures full-digital signal transmission and processing, capable of transmitting up to 64 audio channels and additional control signals through a single CAT5e cable.
  •       Each microphone unit supports independent audio and ID outputs, enabling seamless integration with voice recognition systems for speaker role separation.
  •      The system delivers high-fidelity audio with lossless transmission, a 48kHz sampling rate, and a 20Hz–20kHz frequency response.
  •       A single conference controller can independently manage and merge up to four conference rooms, with cascading options for larger setups. It also supports grouping and controlling four independent microphone lines.
  •       The "daisy-chain loop network" design ensures continuous operation even if units are replaced or malfunction, providing a reliable and robust system.
  •       Microphone sensitivity and 8-segment EQ settings can be adjusted individually. The controller provides a 16-segment EQ for precise sound field adjustments, including noise gate recognition, automatic gain control, feedback suppression, and auto-mixing.
  •       Zoned sound output automatically adjusts microphone volume for optimal pickup over longer distances without feedback.
  •       Advanced audio processing includes echo cancellation, real-time two-way communication with other controllers or third-party video conferencing systems.
  •       The system includes USB memory with 32GB capacity, an internal CPU with RAM, and advanced noise cancellation for clear recording.
  •       Time management features include a countdown speech timer for efficient conference management.
  •       Optional modules include DANTE for digital audio integration and a fourth RJ45 output for chairman, delegate, translation, or other microphone units.
  •      The system can power 2x120W PoE speakers and supports up to 16 PoE speakers via extension units, ensuring a flexible and scalable solution for modern conferencing needs.

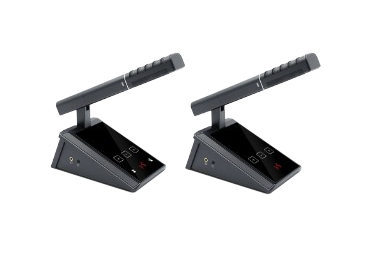

FUNCTIONS

  • Complies with IEC standards.
  •   Offers reliable performance and scalability.
  •  Expands up to 5200 discussion units with a full-digital extension main unit.
  •  Uses a daisy-chain loop network design.
  •  Assigns unique IDs to each unit to avoid conflicts.
  • Supports both wired and wireless discussion units.
  • Allows easy addition of meeting delegates.
  • Operates up to 8 wireless microphones simultaneously.
  •  Uses adaptive interference avoidance technology.
  •  Complies with IEEE 802.11n standard (5GHz Wi-Fi).
  •    Provides strong anti-interference capability.
  • Includes 2 audio input channels (XLR or RCA).
  • Suitable for local or remote video conferencing.
  •   Supports 8 audio output channels (XLR, RCA, or Phoenix).
  • Ideal for interpretation or partitioned audio output.
  •  Allows connection of condenser or dynamic microphones.
  • Enhances user flexibility.
  • Has built-in multi-way internal communication.
  • Supports TCP/IP for PC connectivity.
  •  Enables RS232 control for mic switching, priority, and volume.
  • RS232/RS485 supports camera auto-tracking protocols.
  • Features hot plug-and-play with auto-recovery.
  • Operates on 100V to 240VAC power supply.
  • Adapts well to various environments.

Tech Specification

Model DCS-DWC | DCS-DWD
Power 100V / 240V AC
power consumption 12W
Maximum power consumption 150W
Frequency Response    20Hz ~ 20KHz
Noise ratio 96dBA
Total harmonic distortion  0.05%
Channel Crosstalk 85dB
Dynamic range 94dB
Ethernet control RJ45 connected to PC
Dimensions (mm 483L x 260W x43.6H
Weight 3kg

Compatible

DCS-AP5

5G wifi access point
